| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Usage/Application | Water |
| Frequency | 50 Hz |
| Display | Digital |
| Material | Mild Steel |
| Flow Range | 0 to 9999 m3 Per Hour |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Coil Housing | NBR Hard Rubber / EPDM / PTFE / EBONITE |
| Housing | Carbon Steel / Stainless Steel |
| Protection Degree | IP67 / IP68 |
| Accuracy | 0.25% to 0.50% |
| Power Supply | 24 VDC or 230 VAC Electromagnetic |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Display | Digital |
| Accuracy | 0.5% |
| IP Rating | IP67 |
| Frequency | 50 Hz |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Usage/Application | Water |
| Display | Digital |
| Accuracy | 0.5% |
| Power Supply | 220 V AC / 24 V DC |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Power Supply | 24 VDC / 230 VAC |
| Electrode Material | Hastelloy C, SS 316 |
| Environment Temp. | 0 - 150 Deg. C (Depends on Liner) |
| Accuracy | 0.25% to 0.50% |
| Line Size | 15 - 1000 mm |
| Output Current | 4-20 mA, Relay, Pulse, RS 485, Data Logging |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Lining Material | PTFE, Rubber, Other As Per Request |
| Body Material | MS or SS |
| Flanges | ANSI / DIN / BS / SMS / Tri-Clamp / Sandwich |
| Transmitter | Local (Integral) |
| Velocity Range | 0.2 to 10 m/s |
| Coil Housing | NBR Hard Rubber / EPDM / PTFE / EBONITE |
| Housing Material | Carbon Steel / Stainless Steel |
| Protection Degree | IP67 / IP68 |
| Series | e-MAG 100 |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Material | Mild Steel |
| Flow Range | 0 to 9999 m3 Per Hour |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Coil Housing | NBR Hard Rubber / EPDM / PTFE / EBONITE |
| Housing | Carbon Steel / Stainless Steel |
| Protection Degree | IP67 / IP68 |
| Accuracy | 0.25% to 0.50% |
| Power Supply | 24 VDC or 230 VAC Electromagnetic |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Usage/Application | Residential |
| Display | Digital |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Coil Housing | NBR Hard Rubber / EPDM / PTFE / EBONITE |
| Housing | Carbon Steel / Stainless Steel |
| Accuracy | 0.25% to 0.50% |
| Power Supply | 24 VDC or 230 VAC Electromagnetic |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Usage/Application | Residential |
| Display | Digital |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Coil Housing | NBR Hard Rubber / EPDM / PTFE / EBONITE |
| Housing | Carbon Steel / Stainless Steel |
| Accuracy | 0.25% to 0.50% |
| Power Supply | 24 VDC or 230 VAC Electromagnetic |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Display | Local, Remote |
| Application Media | Water, Any Liquid |
| Automation Grade | Automatic |
| Connectivity | RS485 |
| Meter Type | Electronics |
| Line Size | 15 to 1000 mm |
| Flow Range (Min-Max) | 1 to 999 |
| Operating Temperature (Celsius) | 120 Degree C |
| Accuracy (%) | 1 |
| Diameter (Millimetre) | 15 to 1000 |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Usage | Residential |
| Display | Digital |
| Velocity Range | 0.2 to 10 m/s |
| Flow Meter Sizes | DN 2 to DN 2000 |
| Accuracy | 0.25% to 0.50% |
| Frequency | 50 Hz |
| Voltage | 220 V |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Line Size | 15-1000 mm |
| Lining Material | PTFE, Rubber |
| Body Material | MS / SS |
| Output | 4-20 mA, Relay, Pulse, RS 485, Data Logging |
| Flanges | ANSI / DIN / BS / SMS / Tri-Clamp / Sandwich |
| Transmitter | Local / Remote |
| Working Temperature | 0 - 150 Deg. C (Depends on Liner) |
| Communication | GSM |
| Power Supply | 24 V DC / 230 V AC |
| Electrode Material | Hastelloy C, SS 316 |
| Minimum Order Quantity | 1 Piece |
| Brand | BR |
| Display | Remote, Local |
| Application Media | Water, Any Liquid |
| Automation Grade | Automatic |
| Condition | New |
| Connectivity | RS485 |
| Meter Type | Electronics |
| Line Size | 15 to 200 mm |
| Model | e-MAG |
| Colour | White |
| Flow Range (Min-Max) | 0 to 999 |
| Operating Pressure | 10 |
| Operating Temperature (Celsius) | 40 |
| Accuracy (%) | 1 |
| Flow Media Type | Water |
Electromagnetic Flow Meters at Best Prices
BR Instrumentation & Controls is one of the leading Electromagnetic Flow Meter Manufacturers serving Mumbai, Pune, Ahmedabad, Gujarat, Chennai, Hyderabad, Bangalore and Maharashtra.
About Electromagnetic Flow Meter
BR Instrumentation & Controls is one of the leading Electromagnetic Flow Meter Manufacturers company in Mumbai, Pune, Ahmedabad, Gujarat, Chennai, Hyderabad, Bangalore and Maharashtra.
The installations of this product have exceeded 6000 numbers at various places in India & Abroad. These meters are widely used in Water Distribution, Sewage Water Treatment, Effluent Measurement, Slurry and Viscous Liquid applications.
Electromagnetic Flow Meter

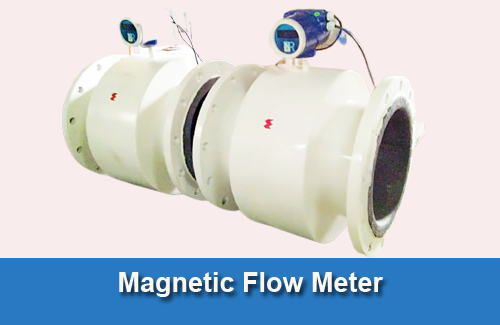

A magnetic flow meter, technically known as an Electromagnetic Flow Meter, works by applying a magnetic field to the metering tube.
This creates a potential difference proportional to the flow velocity and provides maintenance-free performance because there are no moving parts.
Technical Requirements
- Electromagnetic Flow Meters and accessories shall operate continuously at ambient temperatures of 0-55”ĘC for transmitter and -20”ĘC to 100”ĘC for transducer.
- All accessories required for erection, installation and system completion shall be supplied.
- Electromagnetic flow meters are available in Full Bore and Insertion Type designs.

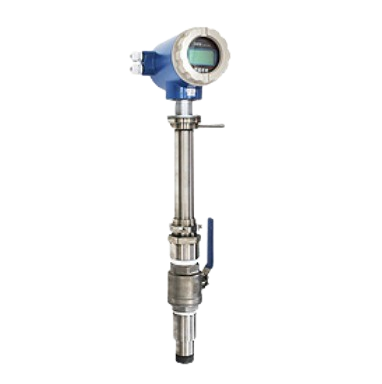

- Insertion Type flow meters measure velocity at a single point and include complete mounting accessories.
- Material of all fixtures shall be SS-316.
Guarantee & Performance
The guarantee of Electromagnetic Flow Meter shall be 18 months from dispatch or 12 months from commissioning, whichever is earlier.
